Frequency Domain¶
Core concepts¶
Fourier Transform¶
FFT is a discrete Fourier transform algorithm which converts a signal from the time domain (signal strength as a function of time) to the frequency domain (signal strength as a function of frequency). Here’s a youtube video that provides a nice visual representation of how it works.
continuous and discretized equations
example figure
matlab
Power spectrum¶
definition
formula
and examples!!!!!!!!
Calculate on MATLAB as follows:
[ps,f_ps] = periodogram(Y,rectwin(N),N,Fs,'power');
Power spectral density (PSD)¶
The power spectral density (PSD) shows where the average power (as it is a density) is distributed as a function of frequency, around one time window. It is expressed in dB/Hz.
formula
Calculate on MATLAB as follows:
[psd,f_psd] = periodogram(Y,rectwin(N),N,Fs,'psd');
MATLAB also provides a nice tutorial for how to calculate both PSD and power spectra with and without the periodogram() function.
Metrics¶
Examples¶
The following section is dedicated to using MATLAB to develop an intuition for 1) how to calculate these metrics, and 2) how they are effected by changes in signal duration, frequency, amplitude among signal types.

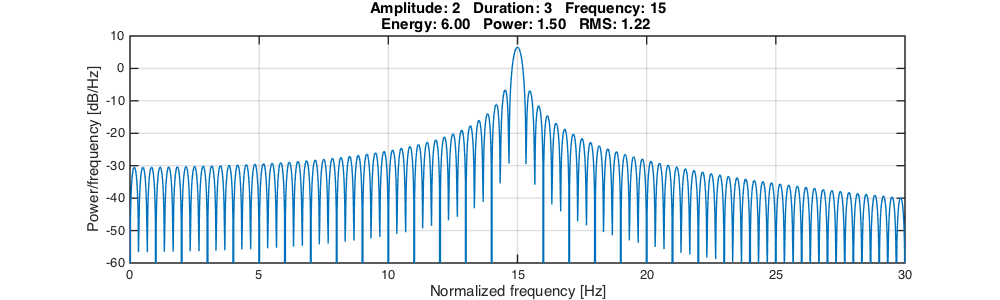

Simple example¶
[1]:
%plot -s 1000,300
%% signal parameters %%
% inputs
a = 2; % signal amplitudes
f = 15; % signal frequencies
d = 3; % signal durations
D = 4; % total duration
Fs = 1e3; % sampling frequency
% calculated params
dt = 1/Fs; % sample interval
n = Fs*d; % length of signal (samples)
N = Fs*D; % length of signal (samples)
NFFT = N*16; % fft size
s0 = N/2-n/2; % start of signal (samples)
t = 0:dt:d-dt; % timesteps of signal
T = 0:dt:D-dt; % timesteps of total
%% create signal %%
% uncomment one of the examples below
% create signal: white noise
% y = a/2*randn(1,n);
% create signal: sine wave
y = a*sin(2*pi*f*t);
% create signal: pulse
%y = a*gauspuls(t,f,0.5,-30);
% create signal: pulsetrain
%npls = 3; % number of pulses
%y_pulse = a*gauspuls(t,f,0.5,-30); % single pulse
%pls = y_pulse(1:floor(n/npls)); % crop single pulse
%pls = repmat(pls,1,npls); % repeat single pulse
%y = zeros(1,n); % allocate signal array
%y(1:length(pls)) = pls; % combine array
% create signal: chirp
%y = chirp(t,f/2,d,f,'linear', -90);
% pad signal
pad = zeros(1,s0);
Y = [pad y pad];
% calculate power spectral density
[psd,f_psd] = periodogram(Y,rectwin(N),NFFT,Fs,'psd');
% calculate power
P = sum(psd)*Fs/NFFT;
% calculate energy
E = P*D;
% calculate RMS
RMS = sqrt(P);
% plot
plot(f_psd,10*log10(psd)); grid on;
ylim([-60 10])
xlim([0 2*f])
ylabel('Power/frequency [dB/Hz]')
xlabel('Normalized frequency [Hz]')
title({sprintf('Amplitude: %1d Duration: %1d Frequency: %1d', a, d, f),...
sprintf('Energy: %.02f Power: %.02f RMS: %.02f ', E, P, RMS)})
Advanced example¶
Common parameters¶
[2]:
a = [1 2]; % signal amplitudes
f = [10 15]; % signal frequencies
d = [2 3]; % signal durations
D = 4; % total duration
Fs = 1e3; % sampling frequency

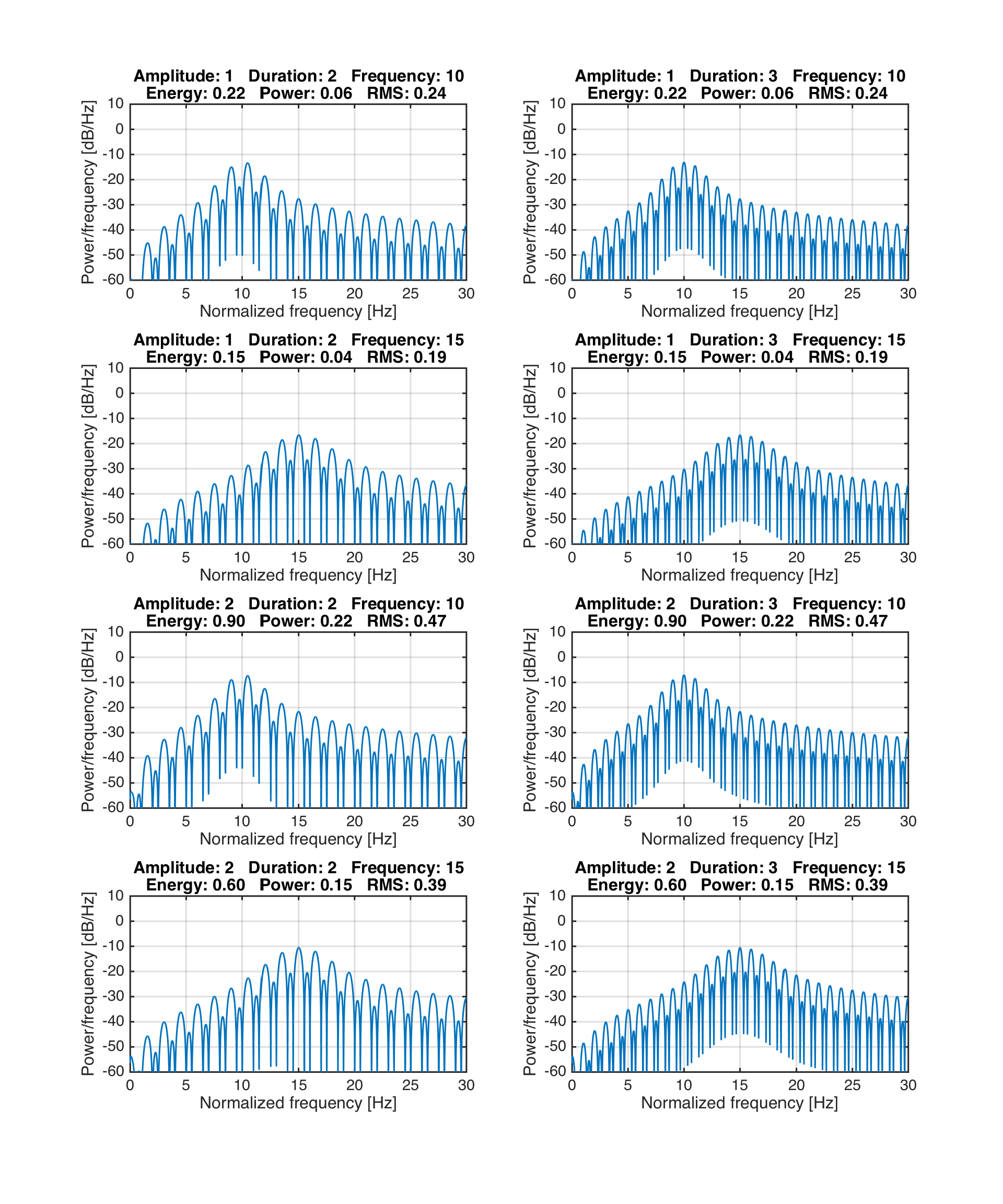

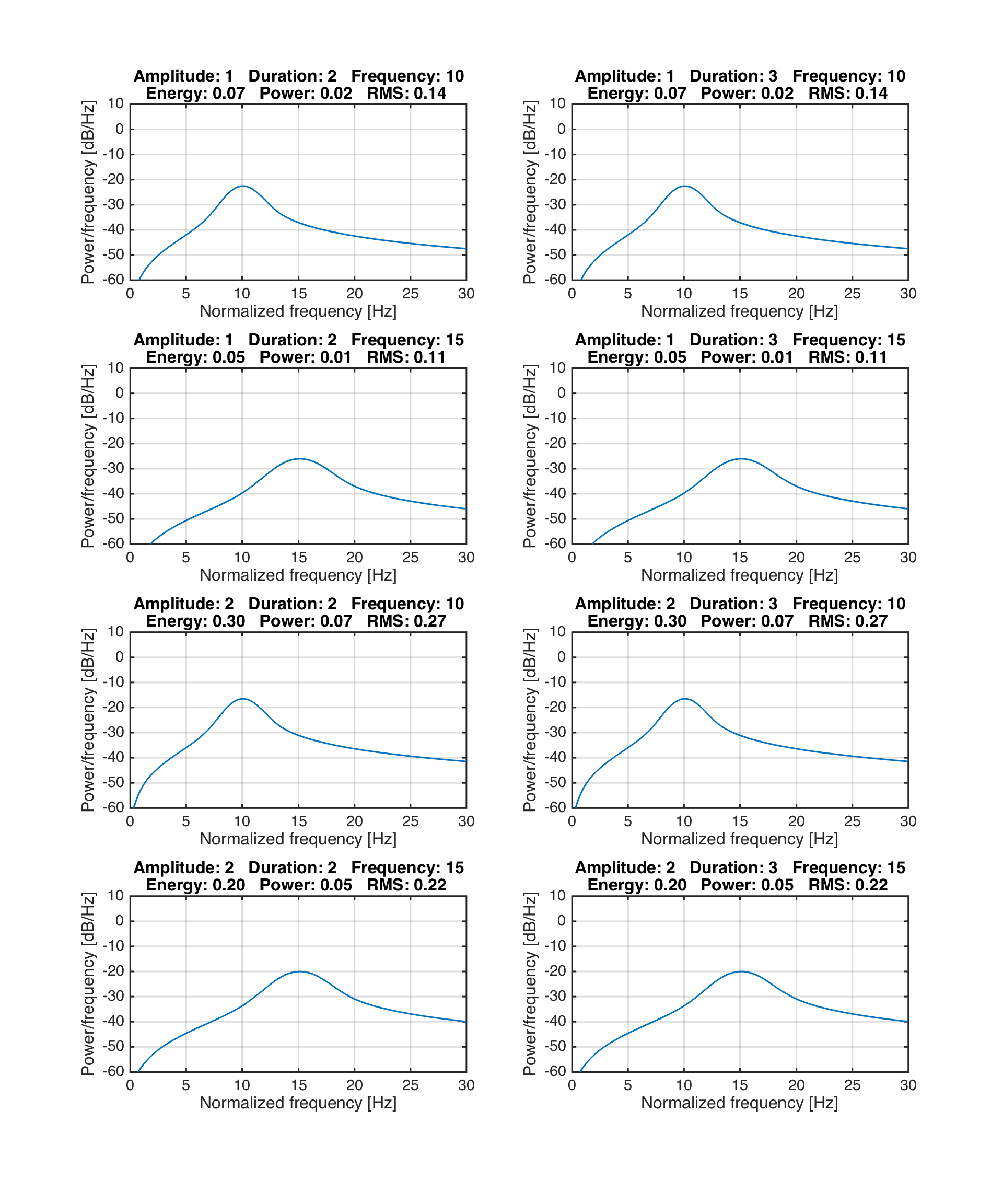

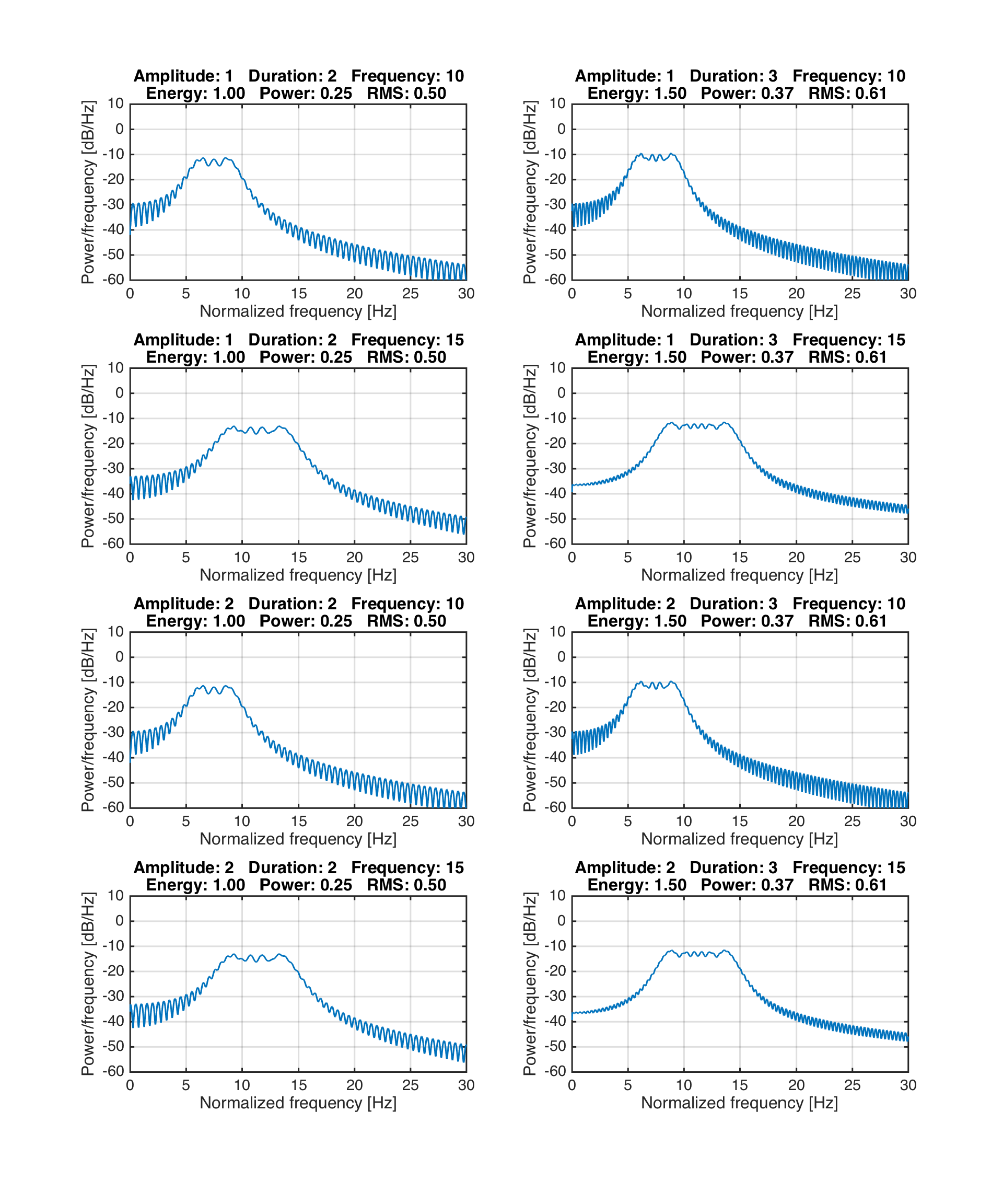

Plotting function¶
The following function will make it convenient for us to loop through all combinations of parameterizations, construct a given signal, calculate the metrics, and plot the output.
[3]:
%%file plot_psd.m
function plot_psd(signal_type,a,f,d,Fs,D)
% parameters
dt = 1/Fs; % sampling interval
N = Fs*D; % length of total (samples)
NFFT = N*16; % length of signal (samples)
T = 0:dt:D-dt; % timesteps of total
figure
cnt=1;
for(ii = 1:length(a))
a_i = a(ii); % amplitude
for(jj = 1:length(f))
f_i = f(jj); % frequency
for(kk = 1:length(d))
d_i = d(kk); % duration
% length of signal (samples)
n = Fs*d_i;
% start of signal (samples)
s0 = N/2-n/2;
% timesteps of signal
t = 0:dt:d_i-dt;
% create pad
pad = zeros(1,s0);
% create signal
switch lower(signal_type)
case 'noise'
y = a_i/2*randn(1,n);
f_i = NaN; % frequency doesn't apply here
case 'sine'
y = a_i*sin(2*pi*f_i*t);
case 'pulse'
y = a_i*gauspuls(t,f_i,0.5,-30);
case 'pulsetrain'
% create single pulse
y_pulse = a_i*gauspuls(t,f_i,0.5,-30);
% number of pulses
npls = 3;
% crop single pulse
pls = y_pulse(1:floor(n/npls));
% repeat single pulse
pls = repmat(pls,1,npls);
% combine in zero-padded array
y = zeros(1,n);
y(1:length(pls)) = pls;
case 'chirp'
y = chirp(t,f_i/2,d_i,f_i,'linear', -90);
end
% pad signal
Y = [pad y pad];
% power spectral density
[psd,f_psd] = periodogram(Y,rectwin(N),NFFT,Fs, 'psd');
% calculate power
P = sum(psd)*Fs/NFFT;
% calculate energy
E = P*D;
% calculate RMS
RMS = sqrt(P);
% plot
subplot(length(a)*length(f)*length(d)/2,2,cnt)
plot(f_psd,10*log10(psd)); grid on;
ylim([-60 10])
xlim([0 2*max(f)])
ylabel('Power/frequency [dB/Hz]')
xlabel('Normalized frequency [Hz]')
title({sprintf('Amplitude: %1d Duration: %1d Frequency: %1d', a_i, d_i, f_i),...
sprintf('Energy: %.02f Power: %.02f RMS: %.02f ', E, P, RMS)})
% update counter
cnt=cnt+1;
end
end
end
set(gcf, 'PaperPosition', [0 0 20 24]); % increase figure size
return
Created file '/Users/hansenjohnson/Projects/intro-acoustics/docs/plot_psd.m'.

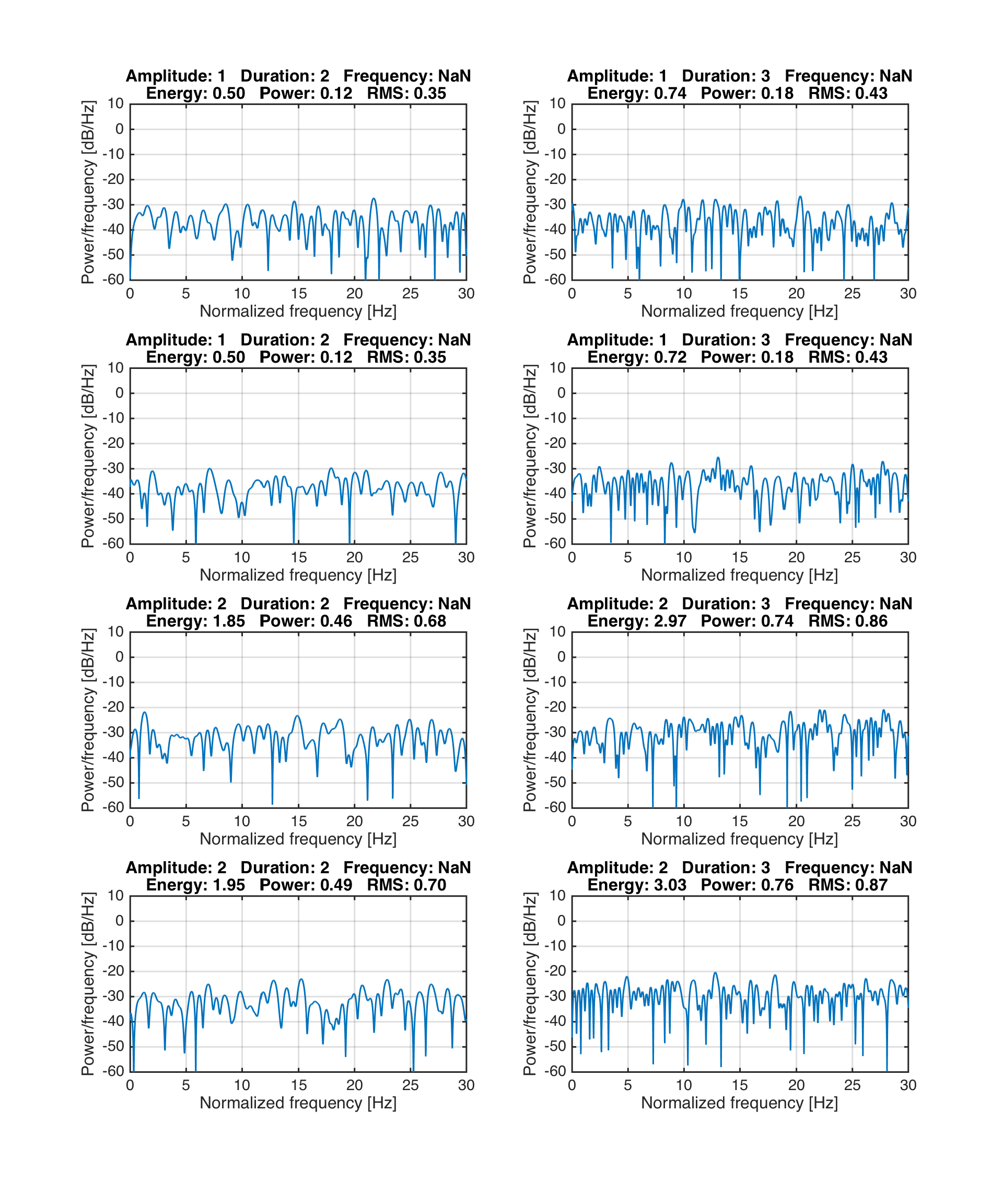

White noise¶
[4]:
cd /Users/hansenjohnson/Projects/intro-acoustics/docs
[5]:
plot_psd('noise',a,f,d,Fs,D);
